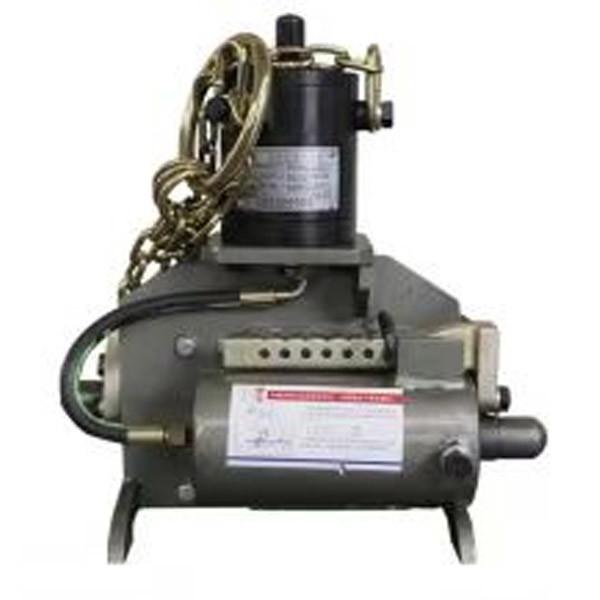

Pneumatic Refractory Lining Vibrator For Induction Furnace

Name: Pneumatic Refractory Lining Vibrator For Induction Furnace
Brand: Huarui
Price: 1 USD

$Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$ $Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$ $Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$ $Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$ $Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$ $Wholesale Pneumatic Refractory Lining Vibrator For Induction Furnace from china suppliers$

Brand Name : Huarui

Model Number : customized

Place of Origin : China

MOQ : 1 set

Price : to be negotiated between two parties

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union

Supply Ability : 10000001 sets/year

Delivery Time : 5~8 days

Packaging Details : waterproof or customized

Contact Now

Pneumatic refractory lining vibrator for induction furnace has the following advantages:

1. Prolong life of refractory lining by 10% ~30 % compared to manual ramming because lining can be rammed firmly and impacted and uniform by our pneumatic rammer vibrator

2 . Greatly Save labor cost , manual ramming work need three or five people to finish this work, however, for our pneumatic vibrator , only one worker can finish this work.

3. Our pneumatic refractory lining vibrator adopt the most advanced technology serving too many customers

Pneumatic refractory lining vibrator includes two rammer type, three hammer type, four hammer type and five hammer type, automatic adjusting type and manual adjusting type.

The followings is the data of two hammer type , please check other pages for three hammer type, four hammer type and five hammer type

Type	KLQ -Z-E Manual Type	QZX2 Automatic Type
Hammer quantity	2	2
Air Consumption (single hammer m³/min).	0.3	0.3
Designed Pressure Mpa.	0.5~0.7	0.6~0.8
Ramming force N	1270~1780	1370~1880
Vibration frequency Hz	195	195
Adjusting range mm	0~230	0~220

$Pneumatic Refractory Lining Vibrator For Induction Furnace$
